Description

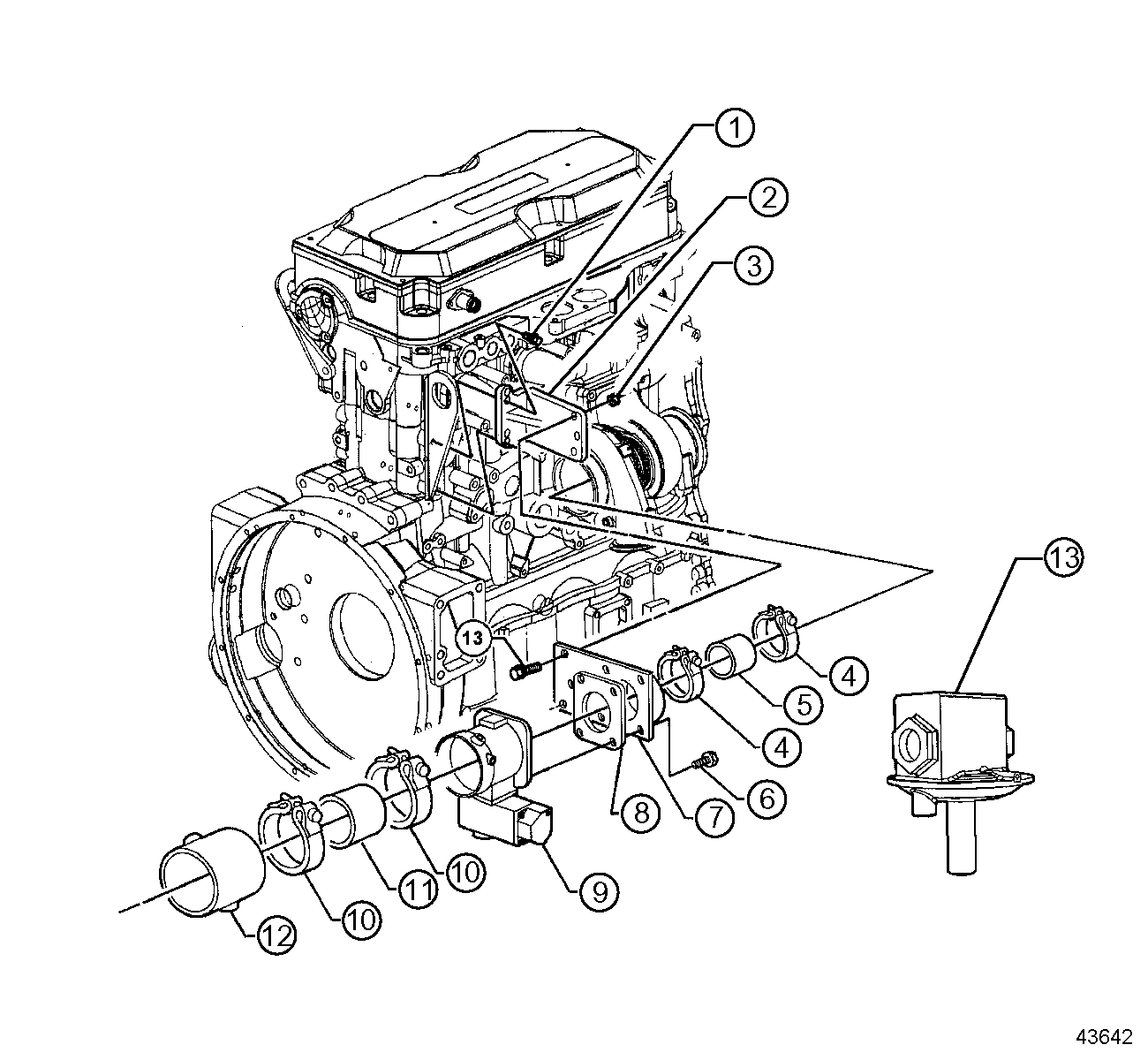

Callout | Part Number | Description |
12 | 23519561 | TUBE AIR INTAKE 3/4 NPTF S50G |
11 | 23523404 | HOSE, 5.00″X2.65″L. |
10 | 05114937 | CLAMP, 5 1/2″-6″ CLAMPING RANGE (3.1280) |
14 | 23530004 | REGULATOR ASSY., GAS MAXITROL |
13 | 11504822 | BOLT, M8 X 1.25 X 30 |
3 | 11507036 | NUT, M8 X 1.25 |
6 | 11509511 | BOLT, M8 X 1.25 X 20 MM |
7 | 23518173 | ADAPTOR FUEL MIXER TO TURBO INL S50G |
9 | 23518880 | MIXING UNIT 140 W/GEN-SET PSV GAS VLV S50 |
8 | 23519562 | GASKET DELTEC MIXING UNIT |

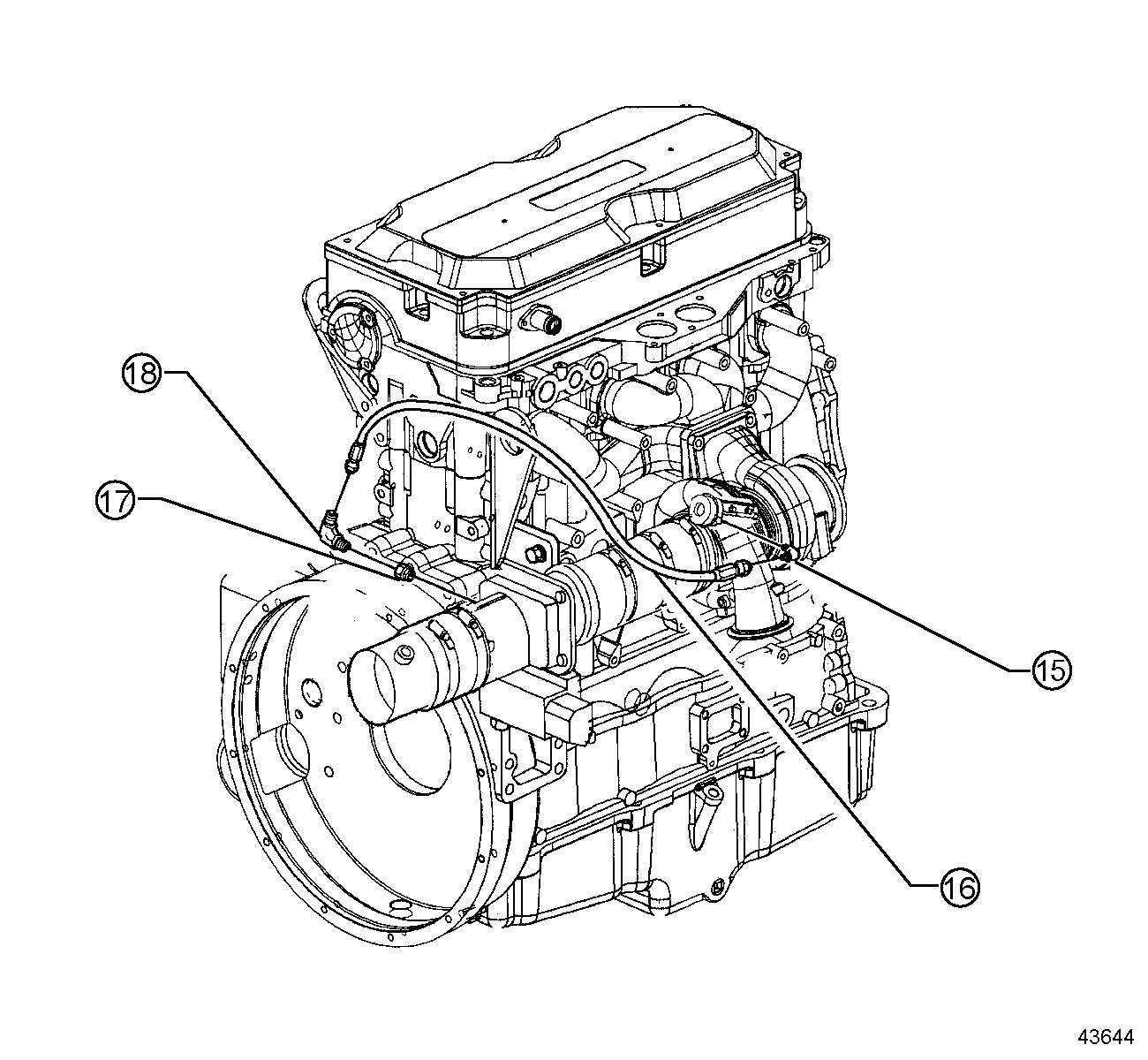

HMRR0170 | HOSE ASSY., #3 X 17″L. | |
23517050 | FITTING 1/8 NPTF/#3 SAE S/S | |
23520457 | ELBOW, 90 DEG MALE TO FEMALE JIC | |
4 | 23520458 | CLAMP, T-BOLT 4.00″DIA X .50″W. |
5 | 23524057 | HOSE, 4.00 X 3.50 LG FLSLCN BLUE |
08924142 | BUSHING, 1/4″X1/8″ RED. (12.9570) | |
1 | 23509520 | BOLT, M12X1.75X47.0 METRIC FLG. HEX HD. |
2 | 23519605 | BRACKET GAS MIXER MTG |
